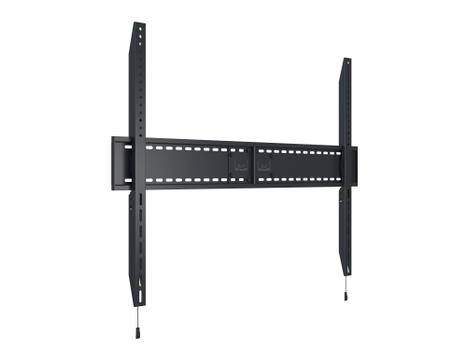

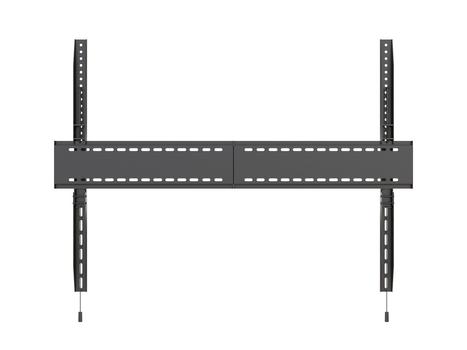

M Universal Fixed Wallmount HD MAX 1200x900
The M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.
Capable of supporting weights of 125kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 1200mm x 900mm and has adjustment screws that enable the screen to be leveled once mounted.
The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110". With a wide VESA range of 1200x900 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
Highlights
- Create almost any Video Wall configurations imaginable
- Clean look & easy to install
- Perfect for digital signage, educational and corporate installations.

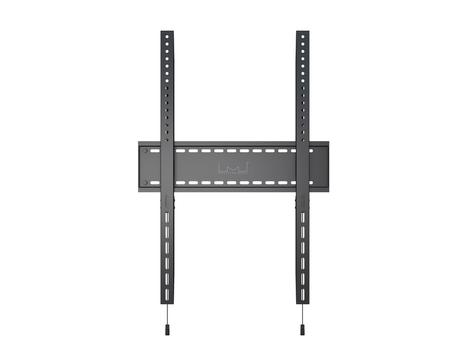

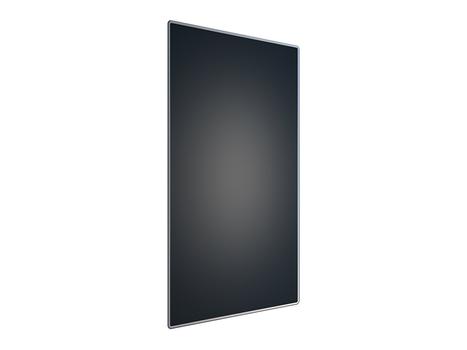

- To be used in both landscape and portait installations.
- Engineered for speed of installation and usability.

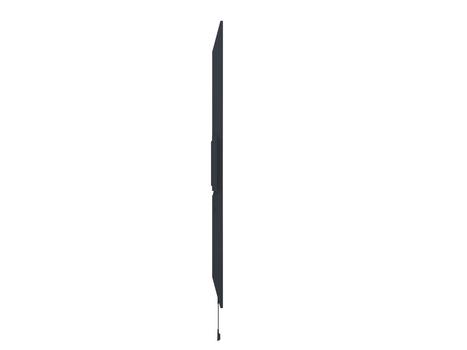

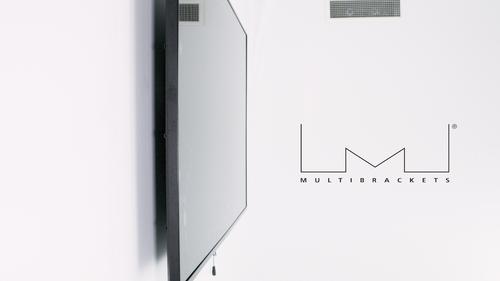

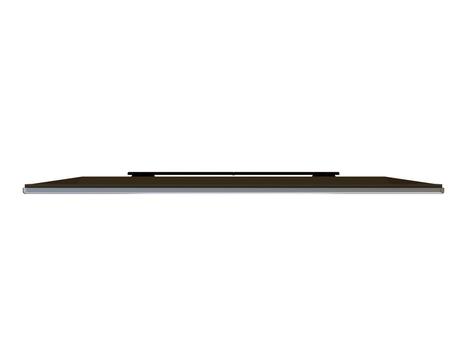

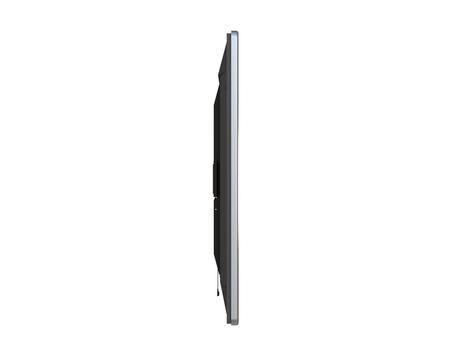

- Slim 45mm distance to wall
- Super Duty (SD) 125kg max load
- Anti-theft: Lock and key (optional)
| Specification |
| M Universal Wallmount Fixed SD MAX 1200x900 |
| For screen size: | 60-110" |
| Universal & VESA standard: | Max VESA 1200x900mm |
| Article No: | 7 350 073 730 940 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 10,5 kg |
| Gross weight: | 11,8 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | 45mm |

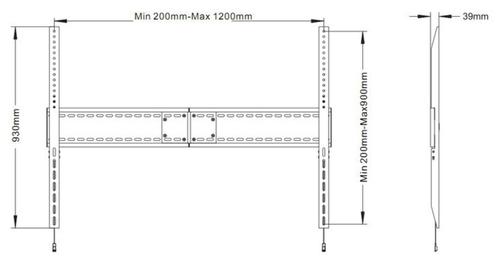

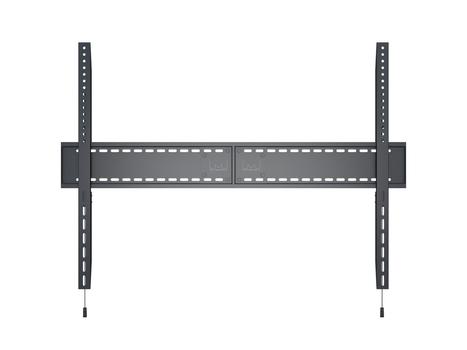

| Backplate measurement: | Landscape: 1314mm (W), Portait: 657mm (W) |
| Antal displayer som stöds | 1 |
| Maxvikt | 125 kg |
| Minsta skärmstorlek | 152,4 cm (60") |
| Maximal skärmstorlek | 2,79 m (110") |
| Monteringssätt | Vägg |
| Monteringsgränssnitt kompatibilitet (min) | 200 x 300 mm |
| Monteringsgränssnitt kompatibilitet (max) | 1200 x 900 mm |
| Gränsssnitt för panelmontering | 200 x 300,200 x 400,300 x 900,400 x 900,600 x 800,600 x 900,800 x 400,800 x 500,800 x 600,900 x 400,900 x 600,900 x 800,1200 x 600,1200 x 800,1200 x 900 |
| Avstånd till väggen (max) | 4,5 cm |
| Produktens färg | Svart |
| Material, hölje | Stål |
| Stöldskydd funktion | Ja |
| Plats för hänglås | Ja |
| Metallförpackningens vikt | 7,42 kg |
| Plastförpackningens vikt | 42 g |
| Paper/cardboard packaging weight | 3 kg |
| Djup (min) | 3,9 cm |
| Höjd | 930 mm |
| Vikt | 10,5 kg |
| Förpackningens bredd | 200 mm |
| Låddjup | 960 mm |
| Höjd | 100 mm |
| Vikt inkl. förpackning | 10,5 kg |
| Fraktkartongens bredd | 31,5 cm |
| Fraktkartongens längd | 97 cm |
| Fraktkartongens höjd | 22,5 cm |
| Innerförpackningens bruttovikt | 32,1 kg |
| Antal produkter per innerförpackning | 3 styck |
