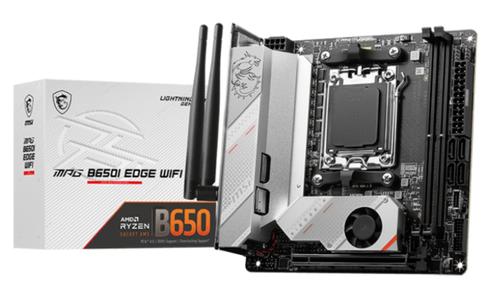

MSI MPG B650I EDGE WIFI Socket AM5, Mini-ITX

MPG B650I EDGE WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7200+MHz (OC)
• Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
• 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

• AMD B650

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

• 2x DDR5, Maximum Memory Capacity 128GB
• Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO™

• 1x HDMI™
• Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz

• 1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
  • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4 (For Ryzen™ 5 8500G processor)
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel

• 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G

• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• 2x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

• Realtek® RTL8125BG 2.5Gbps LAN

• AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x TPM pin header(Support TPM 2.0)
• 2x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

• 4x EZ Debug LED

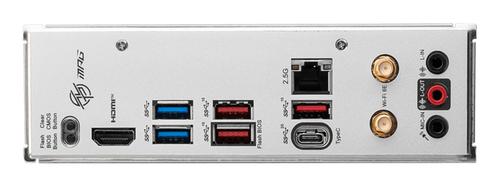

• Clear CMOS Button
• USB 5Gbps (Type-A)
• 2.5G LAN
• Wireless / Bluetooth
• Audio Connectors
• Flash BIOS Button
• HDMI™
• USB 10Gbps (Type-A)
• USB 10Gbps (Type-A)
• USB 20Gbps (Type-C)

• Support for Windows® 11 64-bit, Windows® 10 64-bit

• Mini-ITX
• 170mmx170mm
