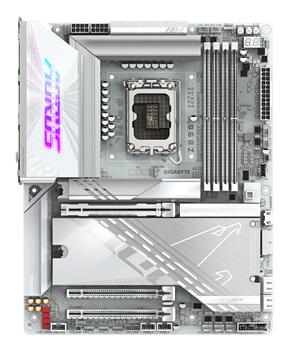

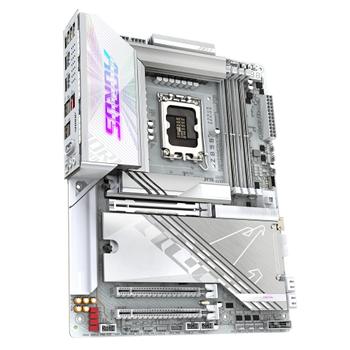

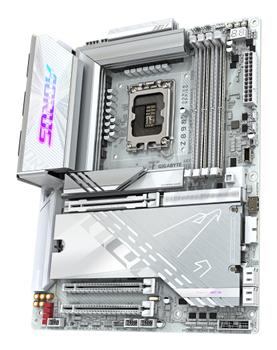

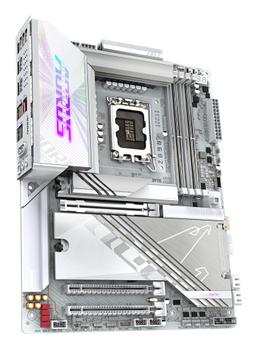

GIGABYTE Z890 AORUS PRO ICE

Z890 AORUS PRO ICE

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 16+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AORUS AI SNATCH : Auto-Overclocking Software by AI models
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• DDR Wind Blade : Enhanced Active Cooling for Memory Modules
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitorin HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
• High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU

• Intel® Z890 Express Chipset

• Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Support CUDIMM memory module

• Integrated Graphics Processor-Intel® HD Graphics support:
  • 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.)
  • When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
  • When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
  • 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
  • Support for up to triple-display at the same time

• Realtek® ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

• Intel® Wi-Fi 7 BE200
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 320MHz wireless standard

• CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

• CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• CPU: 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
• Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Chipset+3 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 5 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x HDMI port
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x noise detection header
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

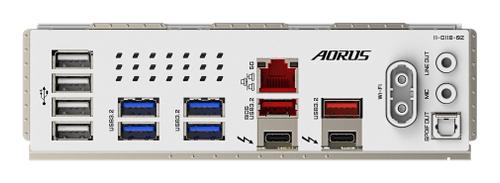

• 4 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 4 x USB 3.2 Gen 1 ports
• 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit

• ATX Form Factor; 30.5cm x 24.4cm
