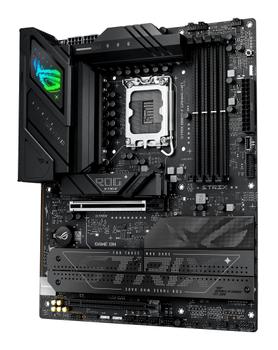

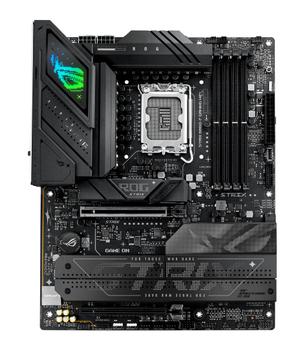

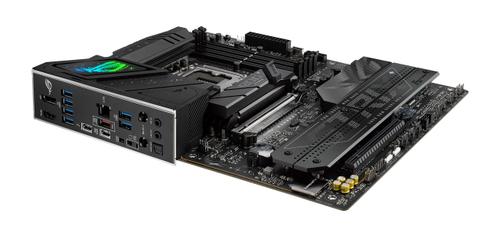

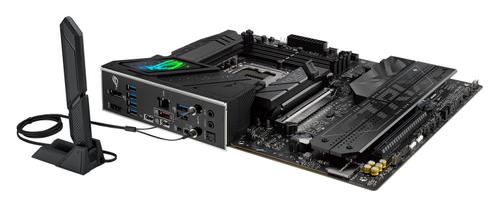

ASUS ROG STRIX B860-F GAMING WIFI Moderkort LGA 1851, ATX, B860, DDR5, 1x PCIe 5.0, 4x M.2

ROG STRIX B860-F GAMING WIFI

• Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® B860 Chipset

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs

• Intel® Core™ Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode)
• Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• Intel® B860 Chipset
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

• Rear USB (Total 9 ports)
  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 6 x USB 5Gbps ports (6 x Type-A)
• Front USB (Total 6 ports)
  • 1 x USB 10Gbps (1 x USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Rear optical S/PDIF out port
  • Premium audio capacitorsAudio cover

• 1 x Thunderbolt™ 4 (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 6 x USB 5Gbps ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
• Storage Related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Chassis Intrusion header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header

• Extreme Engine Digi+ 5K Black metallic capacitors
• ASUS Q-Design
  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-DashboardQ-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Aura Sync Addressable Gen2 headers

• ROG Exclusive Software
  • ROG CPU-Z
  • Dolby Atmos
• ASUS Exclusive Software
  • Armoury Crate
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4
    • GameFirst
    • Power Saving
  • ASUS Driver Hub
  • AIDA64 Extreme (60 days free trial)
  • HWiNFO
  • ASUS GlideX
  • TurboV Core
  • Adobe Creative Cloud (Days Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
• UEFI BIOS
  • NPU Boost
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch package
  • 1 x M.2 Q-Slide package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 4 x M.2 rubbers
• Documentation 1 x Quick start guide

• Windows® 11 (22H2 & later)

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
