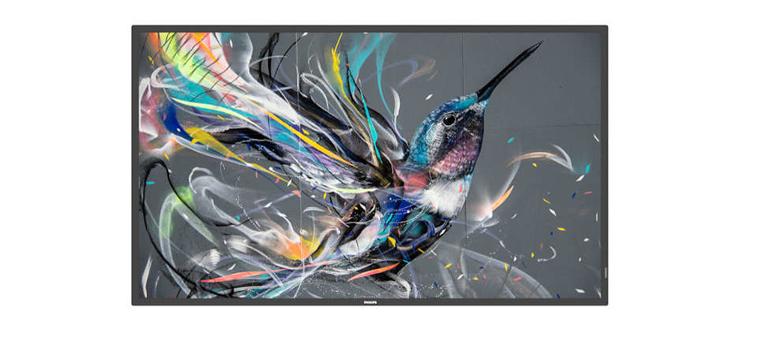

PHILIPS LFD "43BDL3511Q/00

Signage Solutions Q-Line Display

• Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
• From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
• Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
• Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.

• Picture/Display
• Diagonal screen size (metric) 108 cm
• Diagonal screen size (inch) 42.5 inch
• Panel resolution 3840 x 2160
• Optimum resolution 3840 x 2160 @ 60 Hz
• Brightness 400 cd/m²
• Dynamic contrast ratio 500,000:1
• Response time (typical) 8 ms
• Aspect ratio 16:9
• Viewing angle (horizontal) 178 degree
• Viewing angle (vertical) 178 degree
• Pixel pitch 0.2451 x 0.2451 mm
• Display colours 1.07 Billion
• Panel technology IPS
• Contrast ratio (typical) 1200:1
• Clinical image D-Image preset (dicom part 14 compatible)
• Haze 1%
• Supported Display Resolution
• Computer formats
• 640 x 480, 60, 67, 72, 75 Hz
• 720 x 400, 70 Hz
• 800 x 600, 56, 60, 72, 75 Hz
• 832 x 624, 75 Hz
• 1024 x 768, 60, 70, 75 Hz
• 1152 x 864, 75 Hz
• 1152 x 870, 75 Hz
• 1280 x 720, 60 Hz
• 1280 x 800, 60 Hz
• 1280 x 1024, 60 Hz
• 1440 x 900, 60 Hz
• 1600 x 1200, 60 Hz
• 1680 x 1050, 60 Hz
• 1920 x 1080, 60 Hz
• Video formats
• 480i, 60 Hz
• 480p, 60 Hz
• 576p, 50 Hz
• 576i, 50 Hz
• 720p, 60 Hz
• 1080i, 50, 60 Hz
• 1080p, 50, 60 Hz
• 3840 x 2160, 30Hz
• 3840 x 2160, 60 Hz
• Connectivity
• Video input
• DVI-I (x 1)
• HDMI 2.0 (x 2)
• USB 2.0 (x 2)
• Audio input 3.5 mm jack
• Audio output 3.5 mm jack
• External control IR (in/out) 3.5 mm jack
• RJ45 RS232C (in/out) 2.5 mm jack
• Convenience
• Placement Landscape (18/7) Portrait (18/7)
• Tiled Matrix Up to 10 x 15
• Signal loop through RS232 IR Loop through
• Energy-saving functions Smart Power
• Network controllable RS232 RJ45
• Keyboard control Hidden Lockable
• Remote control signal Lockable
• Start-up Switch on delay
• Switch on status Boot on source
• Start-up window enable/disable Philips logo
• Operating conditions
• Temperature range (operation) 0 ~ 40 °C
• Temperature range (storage) -20 ~ 60 °C
• Altitude 0 ~ 3000 m
• MTBF 50,000 hour(s)
• Humidity range (operation)[RH] 20~80% RH (No condensation)
• Humidity range (storage) [RH] 5~95% RH (No condensation)
• Power
• Consumption (Typical) 105 W
• Consumption (Max) 155 W
• Standby power consumption <0.5 W
• Mains power 100–240 V~, 50/60 Hz
• Power Saving Features Smart Power
• Energy Label Class G
• Sound
• Built-in speakers 2 x 10 W RMS
• Accessories
• Stand BM05922(optional)
• Included Accessories
• IR sensor cable (1.8 m) (x 1)
• Philips logo (x 1)
• AC power cord
• AC Switch Cover
• Quick start guide (x 1)
• Remote control and AAA batteries
• RS232 daisy chain cable (x 1)
• USB Cover and screw x 1
• Wire Clamper (x 3)
• Miscellaneous
• On-Screen Display Languages
• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Russian
• Spanish
• Simplified Chinese
• Turkish
• Traditional Chinese
• Regulatory approvals
• CE
• FCC, Class A
• CB
• BSMI
• VCCI
• CU
• ETL
• EMF
• PSB
• Warranty
• 3 year warranty
• Multimedia Applications
• USB Playback Video
• H.264
• JPEG
• MPEG
• WMV3
• USB Playback Picture
• BMP
• JPEG
• PNG
• USB Playback Audio
• AAC
• WMA
• MPEG
• HEAAC
• Dimensions
• Set Width 973.0 mm
• Set Height 561.2 mm
• Set Depth 63.5 mm
• Set Width (inch) 38.31 inch
• Set Height (inch) 22.09 inch
• Set Depth (inch) 2.50 inch
• Bezel width 13.9 mm (Even bezel)
• VESA Mount 200mm x 200mm, M6
• Product weight 10.7 kg
• Product weight (lb) 23.59 lb
