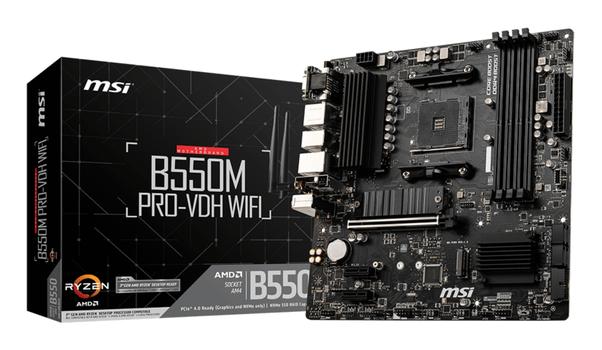

MSI B550M PRO-VDH WIFI

B550M PRO-VDH WIFI

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Supports DDR4 Memory, up to 4400(OC) MHz
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
• Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
• Audio Boost: Reward your ears with studio grade sound quality
• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

• AMD B550 Chipset

• 4x DDR4 memory slots, support up to 128GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4400 MHZ
    • 1DPC 2R max speed 3733 MHZ
    • 2DPC 1R max speed 3866 MHZ
    • 2DPC 2R max speed 3466 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory
• Supports un-buffered memory

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
• 2x PCIe 3.0 x1 slots

• 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
• 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
  • Support HDCP 1.4 & 2.3
• Maximum shared memory of 16 GB

• AMD B550 Chipset
  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• AMD B550 Chipset
  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
• AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

• Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio

• 1x Realtek® 8111HN Gigabit LAN controller

• Wi-Fi AC
  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

• VGA
• USB 3.2 Gen 1 5Gbps Type-A
• Keyboard / Mouse
• LAN
• Flash BIOS Button
• DisplayPort
• HDMI™
• USB 2.0
• USB 3.2 Gen 1 5Gbps Type-A
• Wi-Fi Antenna connectors
• 3x Audio jacks

• Micro-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

• 8 mounting holes
