ASUS PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel

PRIME H610M-A WIFI D4

• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® H610 Chipset

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI® port

• Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot
• Intel® H610 Chipset 1 x PCIe 3.0 x1 slot

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® H610 Chipset
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Intel® 1Gb Ethernet

• Wi-Fi 5
• Wi-Fi 5 (802.11 a/b/g/n/ac)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.0

• Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 3 USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

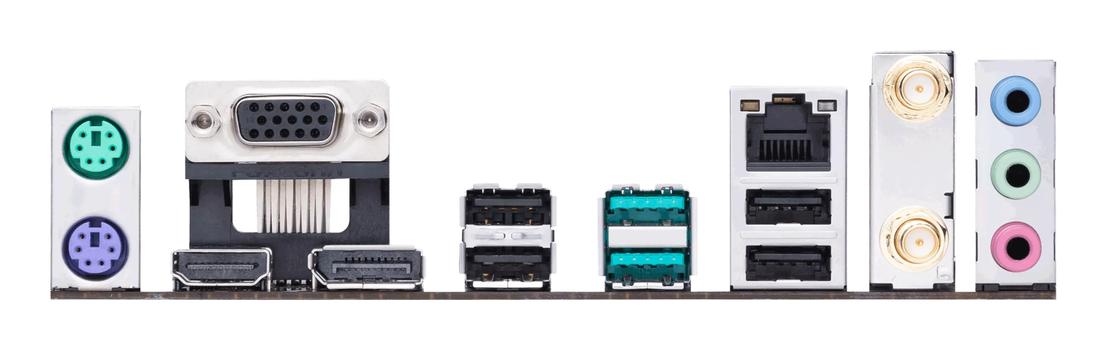

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x D-Sub port
• 1 x Wi-Fi Module
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 2 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x COM Port header
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header

• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-DIMM
  • Q-Slot
• ASUS Thermal Solution
  • VRM heatsink design
• AURA Sync
  • AURA RGB headers
  • Addressable Gen 2 headers

• ASUS Exclusive Software
• Armoury Crate
  • AURA Creator
  • AURA Sync
  • Fan Xpert 2+
• AI Suite 3 Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• ASUS CPU-Z
• MyASUS
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 128 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 SSD screw package
• Installation Media 1 x Support DVD
• Documentation 1 x User guide

• Windows® 11 64-bit, Windows® 10 64-bit

• mATX Form Factor
• 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
