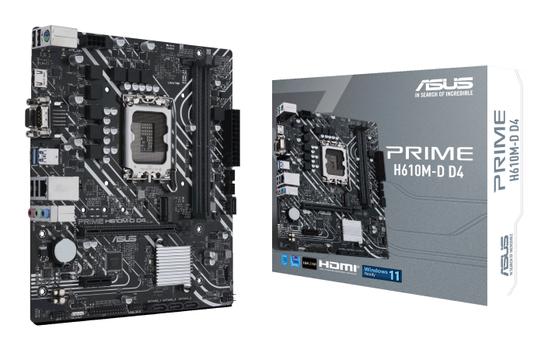

ASUS MB Intel 1700 PRIME H610M-D D4 2

PRIME H610M-D D4

• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
• 5X Protection III: Multiple hardware safeguards for all-round protection

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® H610 Chipset

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 NonECC, Unbuffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

• 1 x DSub port
• 1 x HDMI® port

• Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot
• Intel® H610 Chipset 1 x PCIe 3.0 x1 slot

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

• 1 x Realtek 1Gb Ethernet

• Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x TypeA)
  • 4 x USB 2.0 ports (4 x TypeA)
• Front USB (Total 4 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
  • Supports up to 24Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

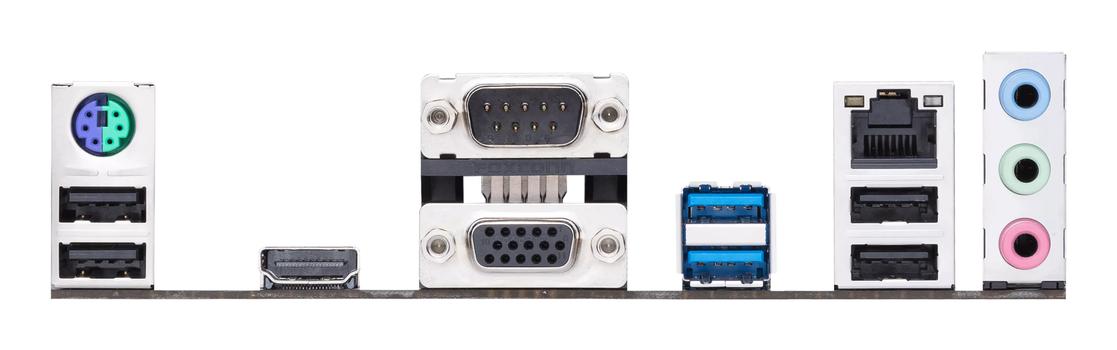

• 2 x USB 3.2 Gen 1 ports (2 x TypeA)
• 4 x USB 2.0 ports (4 x TypeA)
• 1 x DSub port
• 1 x HDMI® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x COM port
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4pin CPU Fan header
  • 1 x 4pin Chassis Fan header
• Power related
  • 1 x 24pin Main Power connector
  • 1 x 8pin +12V Power connector
• Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (141pin)
  • 1 x 101 pin System Panel header

• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • StainlessSteel Back I/O
• ASUS QDesign
  • QDIMM
  • QSlot
• ASUS Thermal Solution Aluminum heatsink design
• ASUS Lighting Control RGB header

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3 Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert
• ASUS CPUZ
• Norton Antivirus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 128 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous

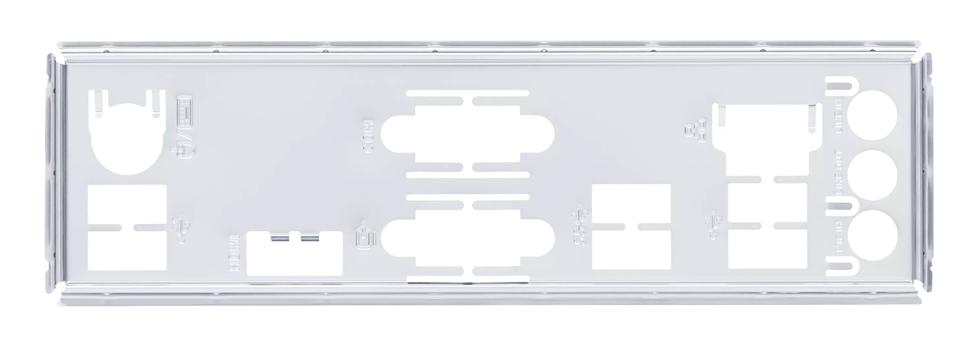

  • 1 x I/O Shield
  • 1 x M.2 ANCHOR
• Installation Media 1 x Support DVD
• Documentation 1 x User Guide

• Windows® 11 64bit, Windows® 10 64bit

• mATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
