AG NEOVO 23,8"" SC-2402 Security Monitor | 24/7 Surveillance Monitors with BNC | 1920x1080 | 5ms | 75Hz | 3Ã¥r

SC-Series 1080p Surveillance Monitor SC-2402

• It’s typical for surveillance operators to require multi-monitor setups to maximize productivity. The SC-2402 adopts a seamless 3-sided bezel-less design to create an ideal work environment and reduce gaps between monitors. Perform rapid analysis, manage, and control video sources from all locations. Evolving situations require quick decisions, which seamless monitors can help with.
• With VESA 100 x 100mm, the SC-2402 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.
• Designed with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially higher cost-effectiveness. The SC-2402 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo’s patented Anti-Burn-in technology. Expect prolonged life for LCD screens.
• There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!
• Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.
• More detail from black-level adjustment means improved visibility of dark images.
• By coming with a contrast enhancer, the surveillance monitor enables low-contrast images to become more clear and defined.

• Panel
• Panel Type: LED-Backlit TFT LCD
• Panel Size: 23.8
• Max. Resolution: FHD 1920 x 1080
• Pixel Pitch: 0.275 mm
• Brightness: 250 cd/m²
• Contrast Ratio: 20,000,000:1 (DCR)
• Viewing Angle (H/V): 178°/178°
• Display Colour: 16.7M
• Response Time: 5 ms
• Surface Treatment: Anti-Glare Treatment (Haze25%),3H Hard Coating
• Frequency
• Frequency (H): 30 kHz-85 kHz
• Frequency (V): 48 Hz-75 Hz

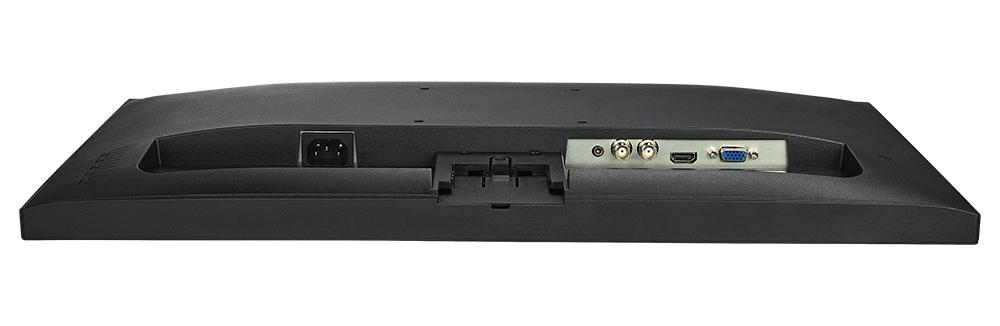

• Signal Input
• HDMI: 1.4 x 1
• VGA: 15-Pin D-Sub x 1
• Composite: BNC x 1
• Signal Output Composite: BNC x 1
• Audio
• Audio In: Stereo Audio Jack (3.5 mm)
• Internal Speakers: 2W x 2
• Power
• Power Requirements: AC 100-240V, 50/60 Hz
• On Mode: 15W (On)
• Standby Mode: < 0.5W
• Off Mode: < 0.2W
• Operating Conditions
• Temperature: 5°C-35°C (41°F-95°F)
• Humidity: 20%-85% (non-condensing)
• Mounting
• VESA FPMPMI: Yes (100 x 100 mm)
• Stand
• Tilt: -5° to 20°
• Security
• Kensington Security Slot: Yes
• Dimensions
• Product with Base (W x H x D): 540.1 x 408.3x 226.5 mm (21.3" x 16.1" x 8.9")
• Product w/o Base (W x H x D): 540.1 x 322.1 x 41.8 mm (21.3" x 12.7" x 1.7")
• Packaging (W x H x D): 606.0 x 480.0 x 108.0 mm (23.9" x 18.9"x 4.3")
• Weight
• Product w/o Base: 3.0 kg (6.6 lb)
• Product with Base: 3.4 kg (7.5 lb)
• Packaging: 4.8 kg (10.6 lb)
• Regulation Approval
• Certifications & Compliance: CE, LVD, WEEE, RoHS, REACH,UKCA, EAC, FCC, ICES-003
• Accessories
• Supplied: Power Cord, VGA Cable, Audio Cable, Quick Start Guide, Warranty Card
• Optional Accessories
• Ceiling Mount (Landscape only): CMP-01+WMK-03
• Wall Mount (Landscape only): WMA-01, WMK-01, WMK-03, PMK-01
• Desk mount (Landscape only): DMC-01, DMC-02D, DMS-01D, DMS-01Q, ES-02
• Power
• Power Supply: Internal
• Storage Conditions
• Temperature: -20°C-60°C (-4°F-140°F)
• Humidity: 10%-90% (non-condensing)
